Fibre Reinforced Plastic Rod
(FRP/ GRP)

Our GRP Rod are produced from Quality Glass Fibre with an Epoxy Resin. It is used as a Central Strength member or used in Embedding during Fiber Optic Cable Manufacturing. EAA coated GRP provide stronger adhesion to cable jacketing material.

  • Higher tensile strength, High modulus, high flexibility
  • Increase cable protection.
  • Free from chemical corrosion.
  • Low expansion, low weight, Low heat conductivity, cost effective

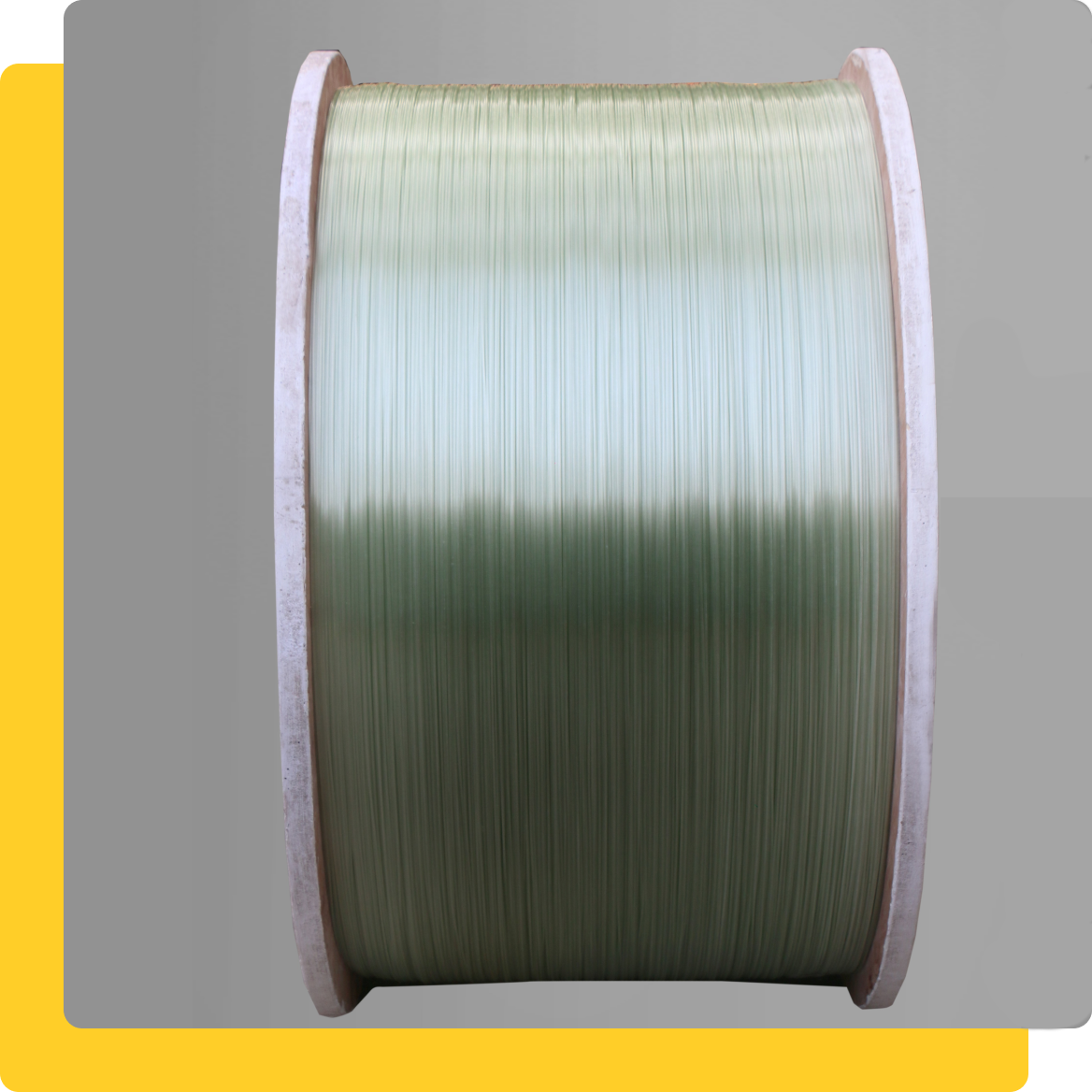

Coated FRP rods in USA used for fiber optic cable raw material
Explore More
Product Specification Table
Basic Properties Fibre Reinforced Plastic
Tensile Strength ≥140kg/mm²
Tensile Modulus ≥5000 kg/mm²
Elongation 2.5-4.0%
Flexural Strength ≥70kg/mm²
Flexural Modulus ≥5000 kg/mm²
Minimum Bend Diameter/Thickness 25XD
Heat Stress @ 80c24hrs
Water Absorption -
water blocking frp
RoHS Complied

Water Blocking (FRP ROD)

Water Blocking FRP materials are used in order to immobilize the product and assure the right cushioning, covers all voids in the cable core at the block and prevents flow of water towards the joints. FRP is used for any type of cable specially designed against water ingress, offering protection beyond the water-resistant property of cable jacket.

Various coating available of FRP Rods as per application.

Our FRP Rods are ROHS Complied as per 2011/65/EU & (EU) 2015/863 directive and REACH Complied as per (EC)No.1907/2006 (REACH)

Explore More
Product Specification Table
Basic Properties Water Blocking FRP
Tensile Strength ≥140kg/mm²
Tensile Modulus ≥5000 kg/mm²
Elongation 2.5-4.0%
Flexural Strength ≥70kg/mm²
Flexural Modulus ≥5000 kg/mm²
Minimum Bend Diameter/Thickness 25XD
Heat Stress @ 80°c24hrs
Water Absorption ≥2 g/meter (Diameter increase-≥0.2 mm)

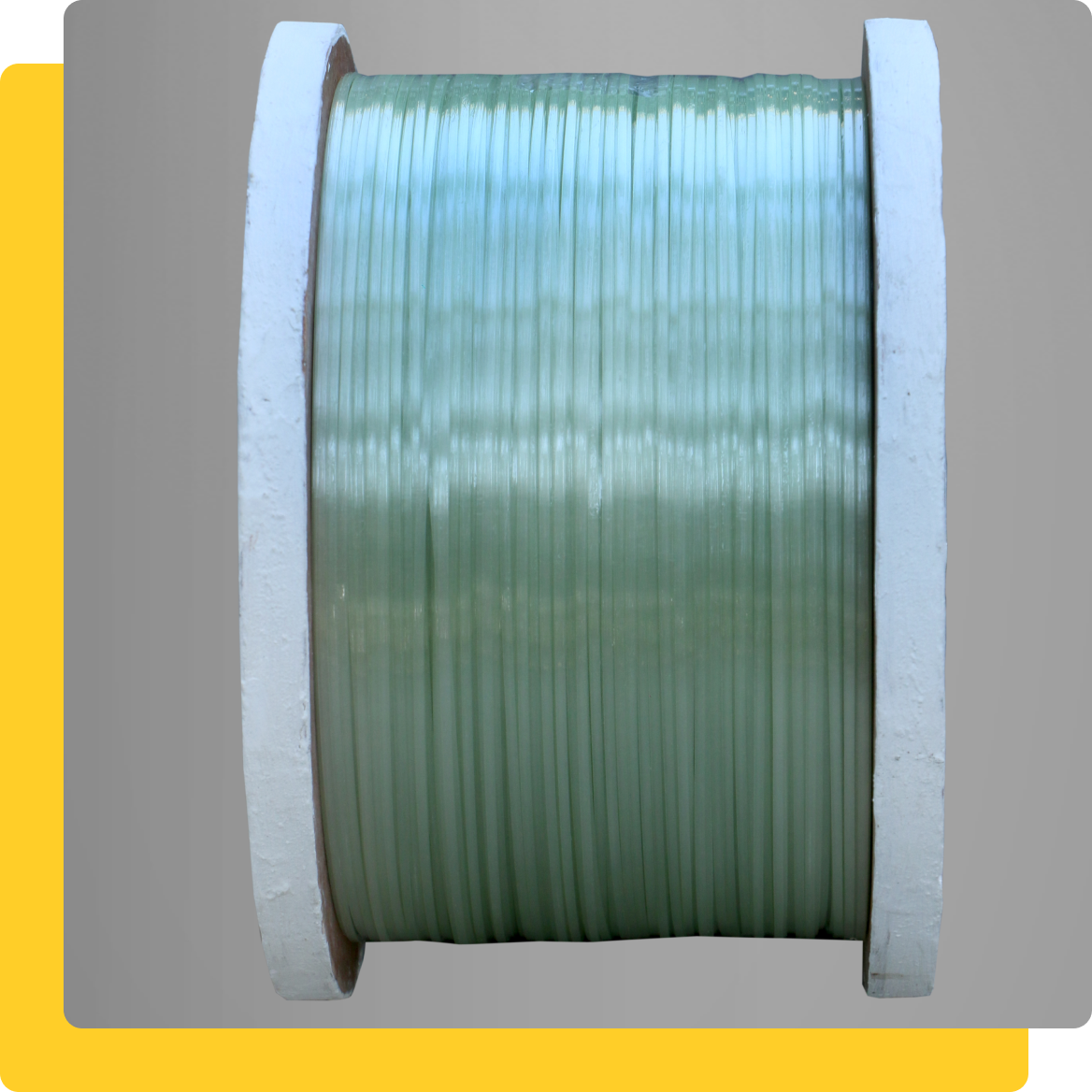

Flat FRP GRP products for fiber optic cable and industrial applications

Flat FRP

Flat FRP are manufactured to serve as dielectric armour in FOC intended for challenging environments. This are used for various cable types, including rodent resistant, direct burial, and bullet resistant aerial cables. Flat rods provide peripheral reinforcement in FOC application and can be embedded in the cable's jacket longitudinally or helically stranded over the core depending on specific design and requirements of the cables.

  • Anti-rodent resistant
  • Helical application
  • Excellent tensile strength
  • Customised dimensions

Purpose of Flat FRP

A standard way to protect fiber optic cables is to use flat, rigid glass-fiber reinforced polymer (FRP) embedded within the cable structure itself. These FRP components serve as strength members, providing essential support and protection without adding significant weight or bulk to the cable design.

Explore More
Product Specification Table
Basic Properties Flat FRP
Tensile Strength ≥120kg/mm²
Tensile Modulus ≥4200 kg/mm²
Elongation ≤3%
Flexural Strength -
Flexural Modulus -
Minimum Bend Diameter/Thickness 25XT
Heat Stress @ 80°c @ 24hrs at 50XT
Water Absorption -

This is just for Reference. For customized requirement contact us

polyrod vigour composites

FRP/GRP

Product Range
FRP 0.5mm - 5.0mm (With different coating options)

Plant Capacity
0.6million km per annum

Product Type
GRH: Uncoated FRP Rod used as Central strength member or as Peripheral Strength Member in various Design of Fiber Optic Cable.

GRM: Used for Application where in specific high adhesive coatings to jacket material is required. Coating is used for the same which applied in microns by Extrusion process.

Explore More
ARAMID REINFORCED PLASTIC ROD (ARP)

ARAMID REINFORCED PLASTIC ROD (ARP)

Polyrod is a specialist ARP rod manufacturer in India, producing Aramid Reinforced Plastic (ARP) Rod - a lightweight, high-strength reinforcing member designed for use in Optical Fiber Cables (OFC). ARP Rod combines the excellent tensile strength of aramid fibres with a polymer matrix to provide mechanical reinforcement while maintaining flexibility and low weight, giving cable manufacturers a strength member that performs where conventional glass-fibre rod is too heavy or too rigid for the design.
As a trusted Aramid Reinforced Plastic Rod supplier, our ARP Rod helps provide tensile strength, dimensional stability and protection against mechanical stresses during cable manufacturing, installation and service. Its lightweight construction makes it suitable for compact, high-fiber-count cable designs where space and weight are important considerations - a growing requirement as OFC networks move toward smaller, denser cable builds.

Explore More
Aramid Reinforced Plastic Rod Product Specification Table
S.No. Properties Unit Specifications Test Method
1 Appearance - Smooth, Free from harmful cracks Visual
2 Aramid Content % 68 ± 2 By Weight
3 Bare Diameter Stability mm ± 0.03 Micrometer
4 Ovality mm < 0.03 Micrometer
5 Unit Weight gm/m 0.25 ± 0.05 By Weight
6 Tensile Strength MPa ≥ 150 ASTM 3916
7 Tensile Modulus GPa ≥ 65 ASTM 3916
8 Elongation at Break % ≥ 2.5 ASTM 3916
9 Min. Bending Diameter at 25°C mm 16 x Diameter of Rod Mandrel Bend
10 Moisture Content % < 2.0 Oven, 150°C at 30 Min
11 Heat Stress (Min. Bending Radius) at 80°C for 24 hours mm 50 x Diameter of Rod ASTM D 696
12 EAA Coating Thickness (As per Customer Requirement) microns 40 ± 20 Micrometer
13 Length Kms As per Customer Requirement Counter Meter

Export Packaging

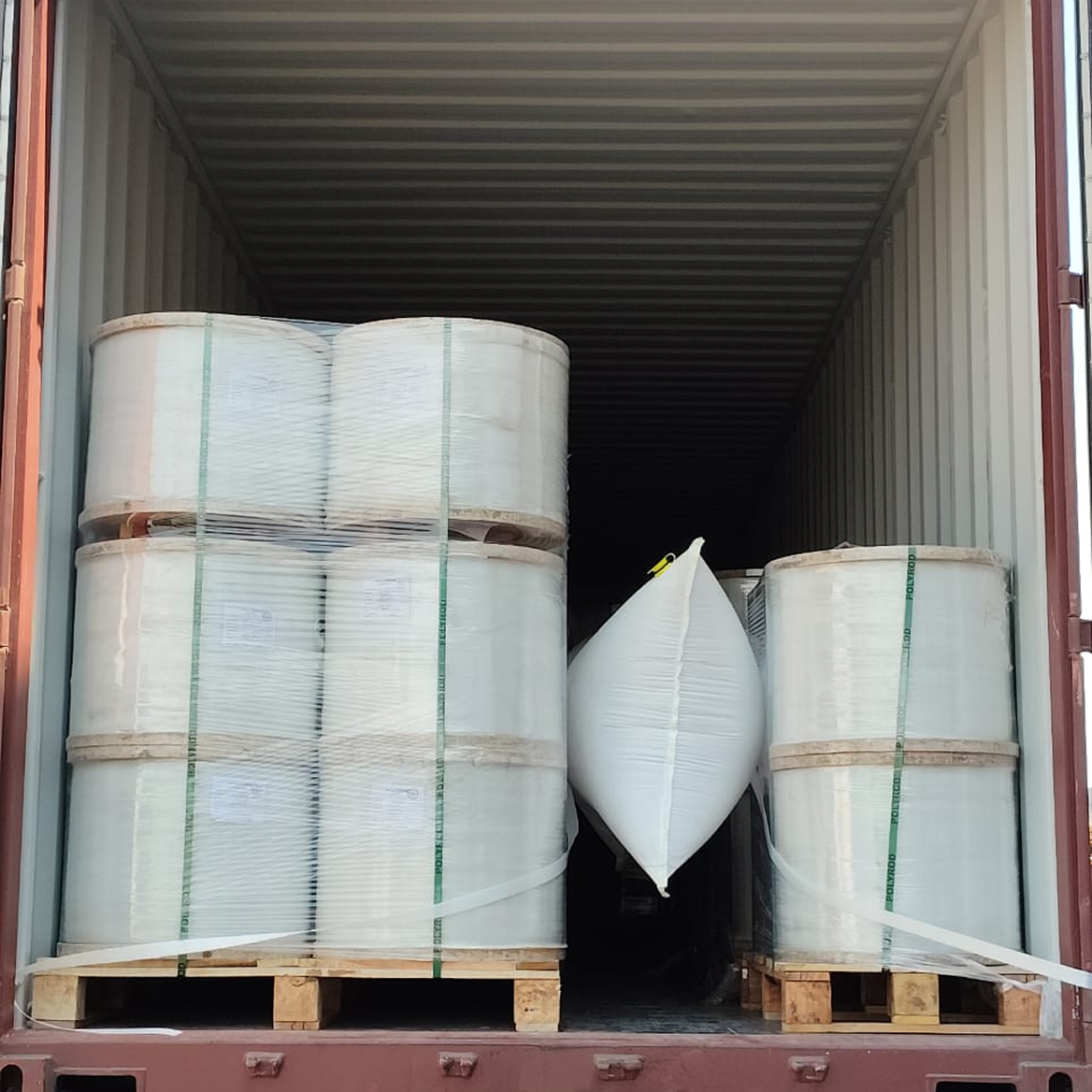

Fiber optic cable raw material packaging in USA

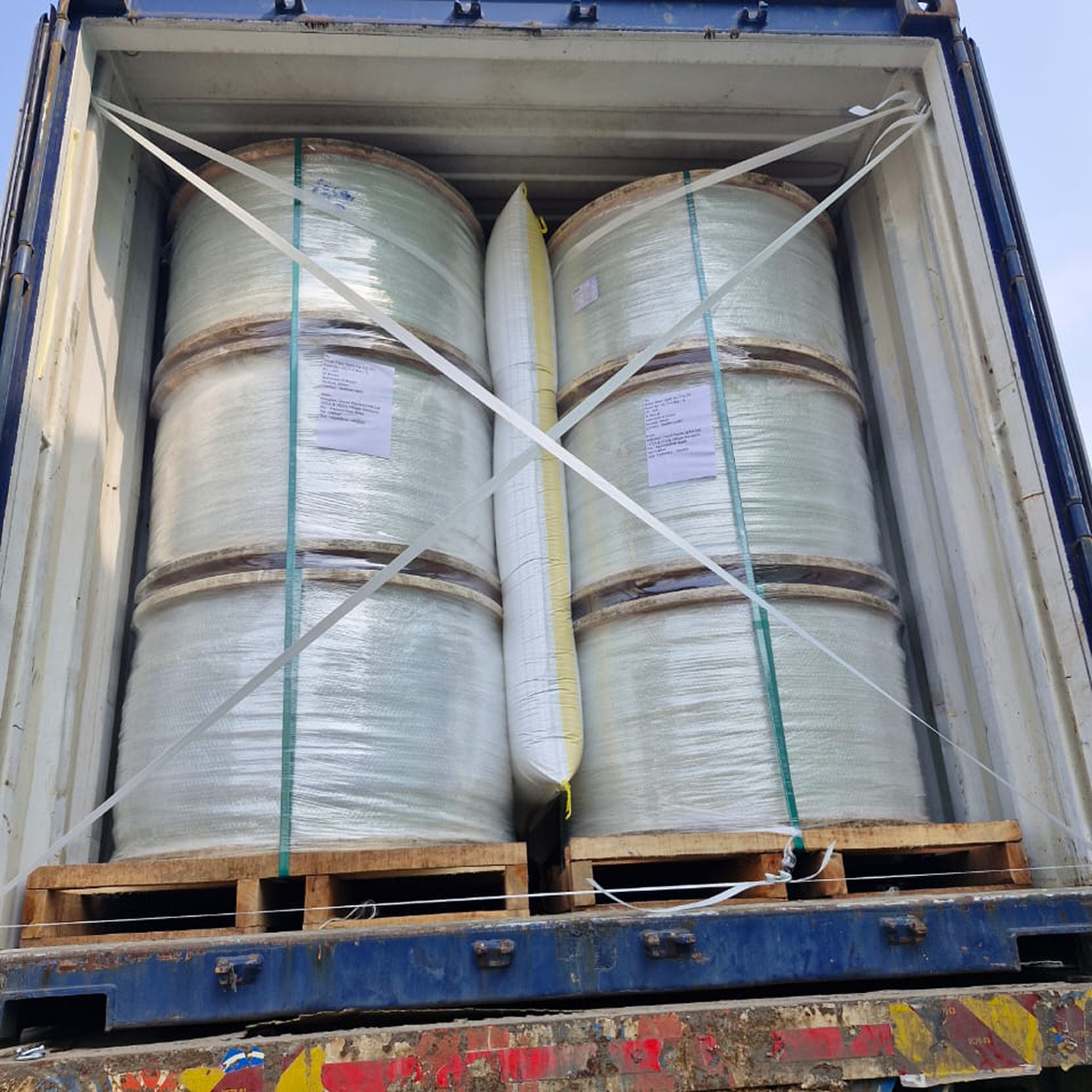

export packaging 2

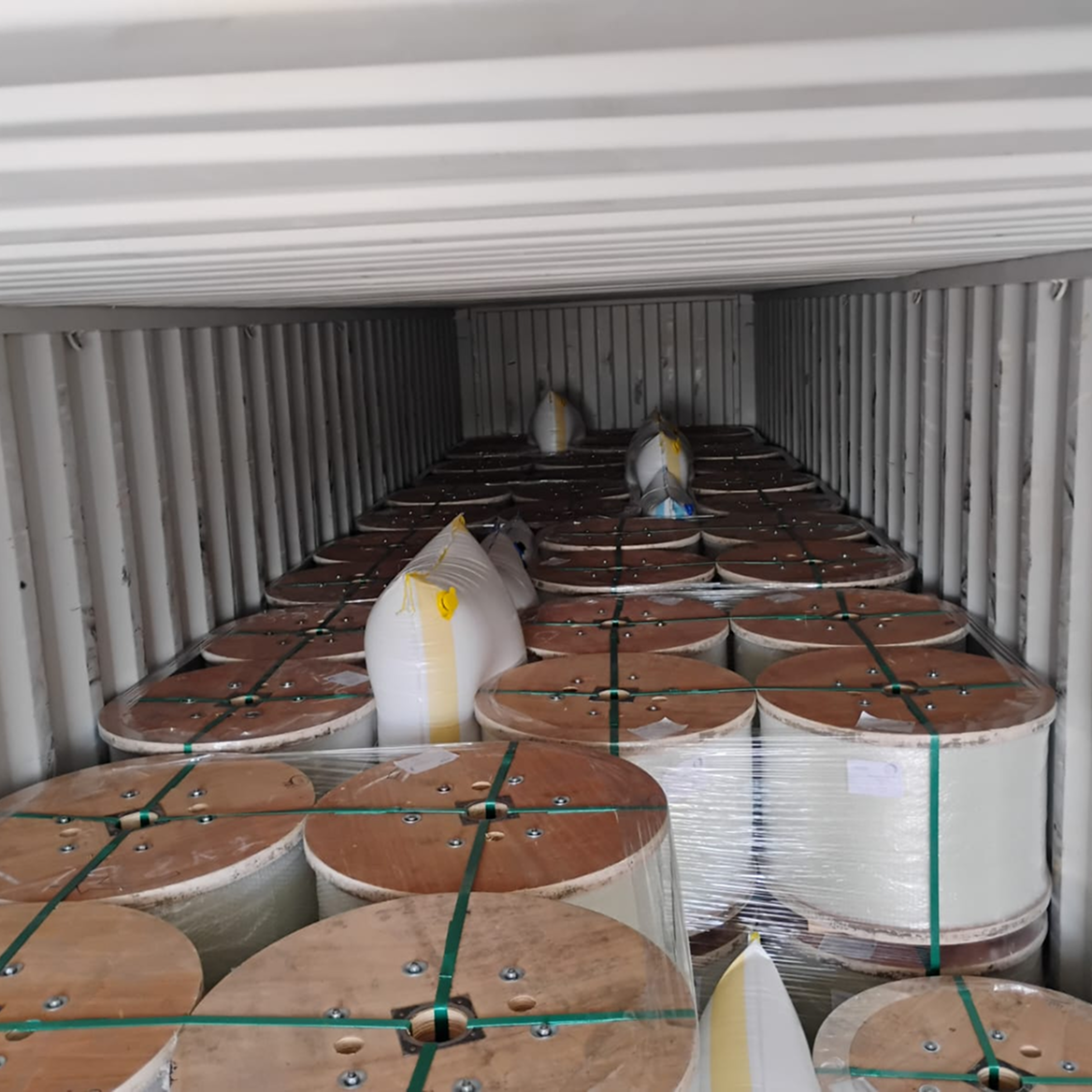

Water blocking tapes export packaging in USA for cable manufacturing
