FRP rods GRP rods and water blocking tapes supplier in USA Vigor Composites

Fibre Reinforced Plastic Rod
FRP Rod / GFRP

Our FRP Rod are produced from Quality Glass Fibre with an Epoxy Resin. It is used as a Central Strength member or used in Embedding during Fiber Optic Cable Manufacturing. EAA coated FRP provide stronger adhesion to cable jacketing material.

  • Higher tensile strength, High modulus, high flexibility
  • Increase cable protection.
  • Free from chemical corrosion.
  • Low expansion, low weight, Low heat conductivity, cost effective

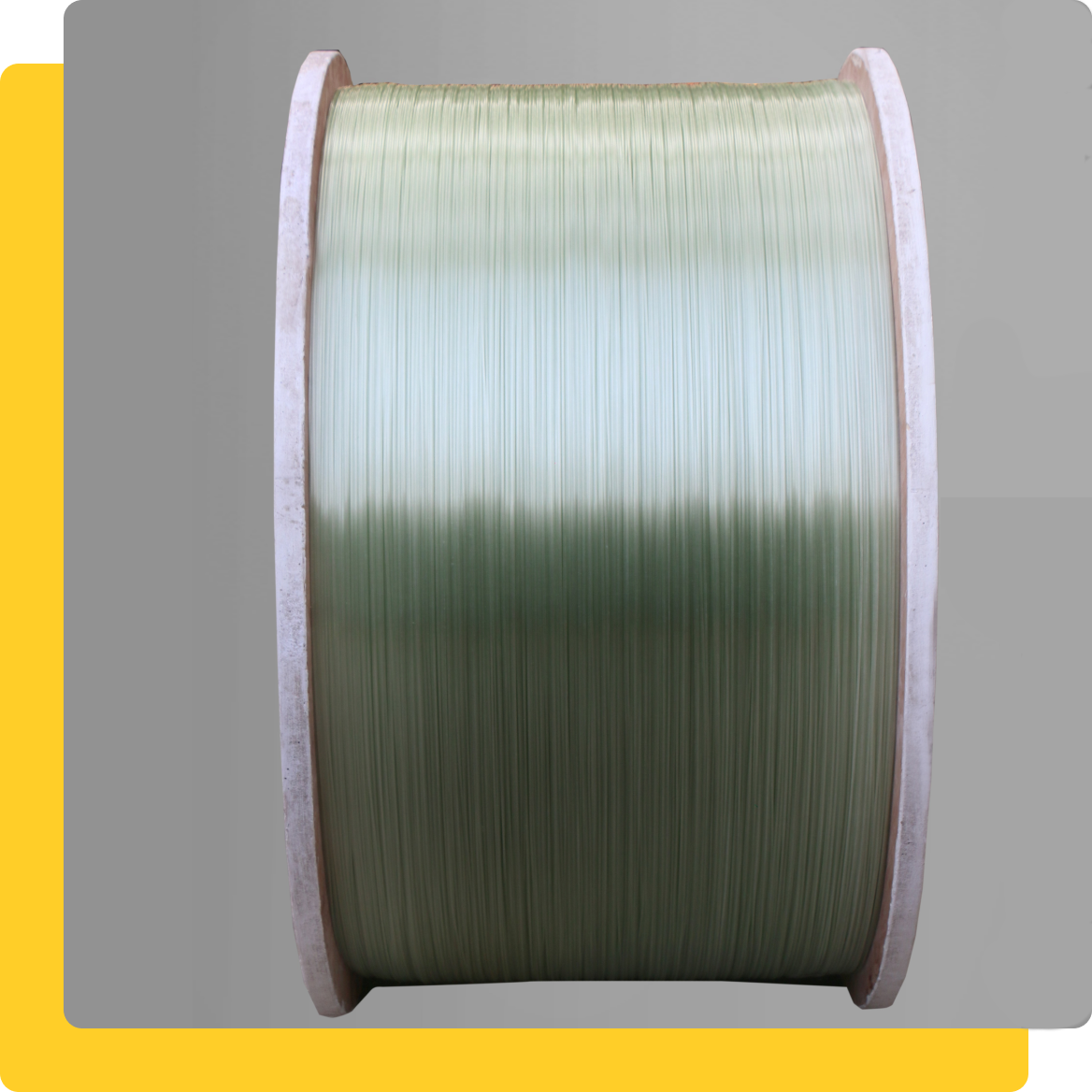

Coated FRP rods in USA used for fiber optic cable raw material

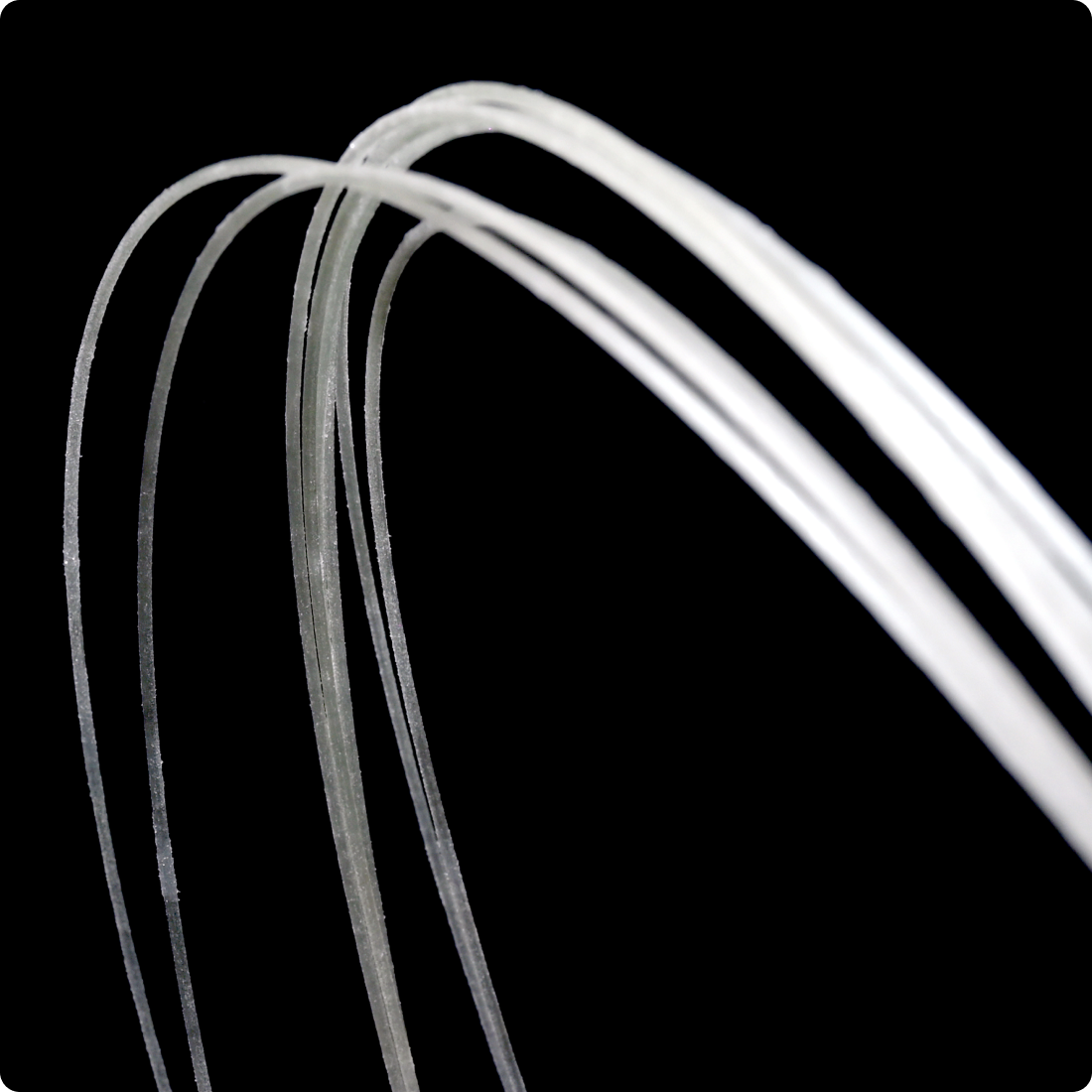

water blocking frp

Water Blocking (FRP ROD)

Water Blocking FRP materials are used in order to immobilize the product and assure the right cushioning, covers all voids in the cable core at the block and prevents flow of water towards the joints. FRP is used for any type of cable specially designed against water ingress, offering protection beyond the water-resistant property of cable jacket.

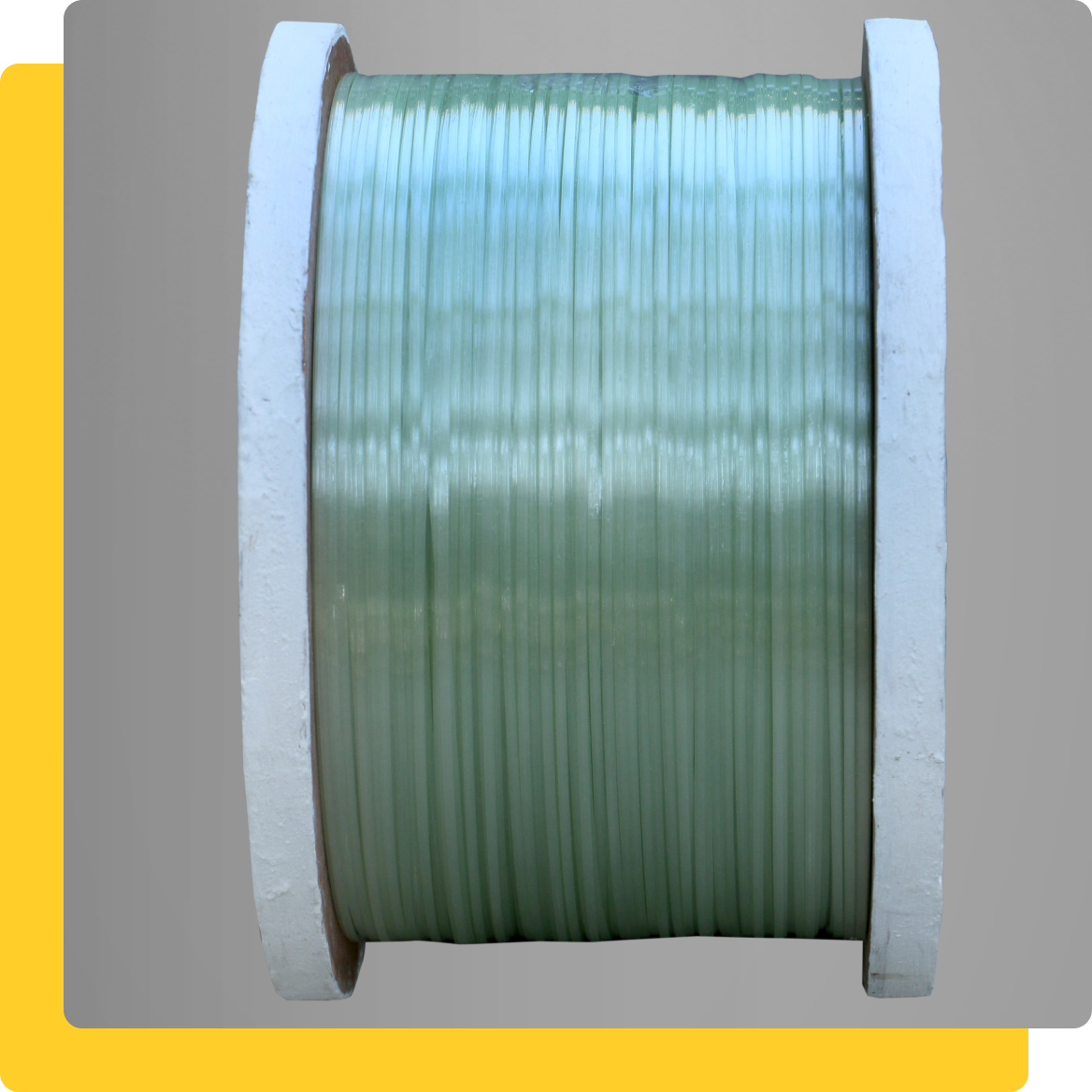

Flat FRP GRP products for fiber optic cable and industrial applications

Flat FRP

Flat FRP are manufactured to serve as dielectric armour in FOC intended for challenging environments. This are used for various cable types, including rodent resistant, direct burial, and bullet resistant aerial cables. Flat rods provide peripheral reinforcement in FOC application and can be embedded in the cable’s jacket longitudinally or helically stranded over the core depending on specific design and requirements of the cables.

  • Anti-rodent resistant
  • Helical application
  • Excellent tensile strength
  • Customised dimensions
polyrod vigour composites

FRP

Product Range
FRP 0.5mm - 5.0mm (With different coating options)

Product Type
GRH: Uncoated FRP Rod used as Central strength member or as Peripheral Strength Member in various Design of Fiber Optic Cable.

GRM: Used for Application where in specific high adhesive coatings to jacket material is required. Coating is used for the same which applied in microns by Extrusion process.

Specification Table
Basic Properties Fibre Reinforced Plastic Water Blocking FRP Flat FRP
Tensile Strength ≥140kg/mm² ≥140kg/mm² ≥120kg/mm²
Tensile Modulus ≥5000 kg/mm² ≥5000 kg/mm² ≥4200 kg/mm²
Elongation 2.5-4.0% 2.5-4.0% ≤3%
Flexural Strength ≥70kg/mm² ≥70kg/mm² -
Flexural Modulus ≥5000 kg/mm² ≥5000 kg/mm² -
Minimum Bend Diameter/Thickness 25XD 25XD 25XT
Heat Stress @ 80c24hrs @ 80°c24hrs @ 80°c @ 24hrs at 50XT
Water Absorption - ≥2 g/meter
(Diameter increase-≥0.2 mm)		 -

This is just for Reference. For customized requirement contact us

Water Blocking Tape (WBT)

Water blocking tapes rapidly absorb liquid at the point of insulation failure & quickly swell to block any further ingress.

  • Excellent gel strength.
  • Excellent swell height.
  • Stable over long period.

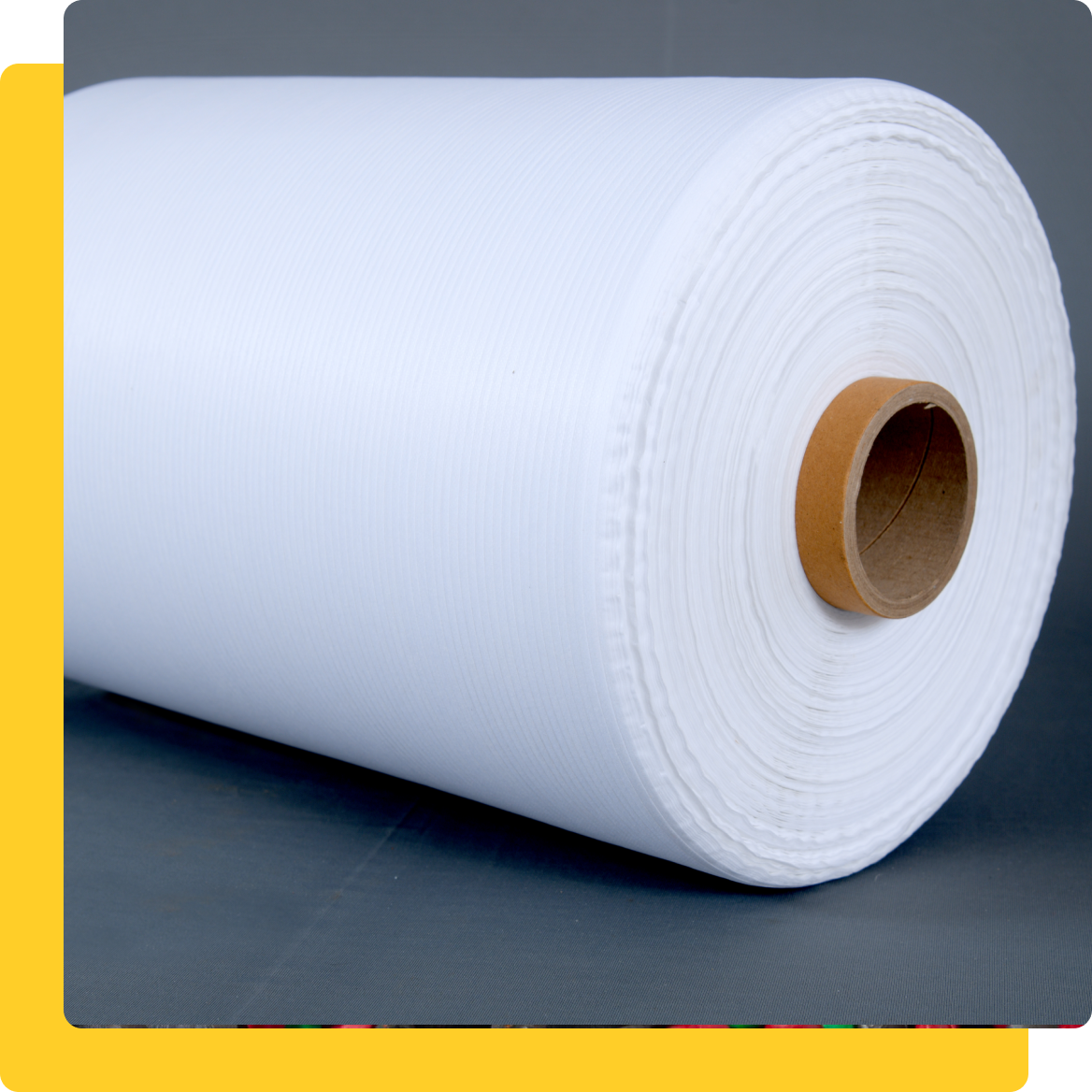

Non-conductive tape bobbin for fiber optic cable insulation in USA
Basic Specification Table
Properties Semi Conductive WB Tape Non Conductive WB Tape
Thickness 0.20 mm to 0.40 mm 0.15 mm to 0.40 mm
Tensile > 25 N/cm 10 N/cm to 30 N/cm
Swelling Height > 20 mm, Excellent > 15 mm, Excellent
Gel Strength Excellent Excellent
GSM Range 60 to 120 g/m2 60 to 90 g/m2
No loose Carbon presence on the conductor offers perfect surface and volume resistance Stable over a long period, easy to process and ideal for high-speed line manufacturing

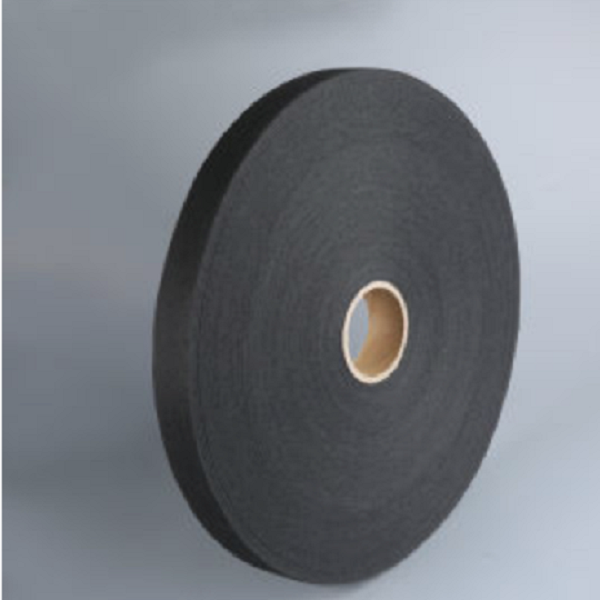

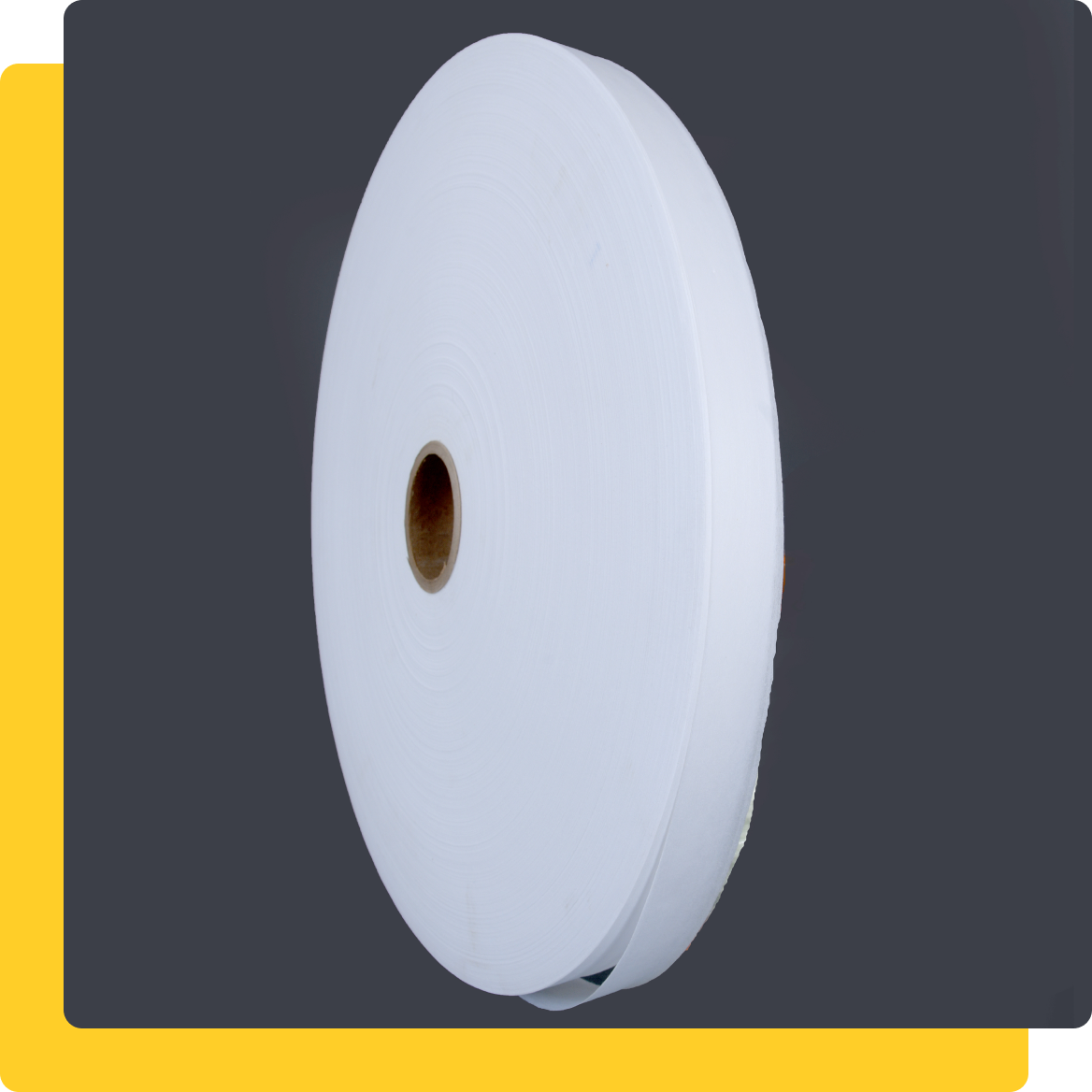

Image Semi-conductive non-woven tape in USA Non-conductive tape pad in USA used for water blocking
